viewsonic IFP6550-2

viewsonic

• DISPLAY
  Panel Size: 65″
  Type/Tech: TFT LCD Module with DLED Backlight.
  Display Area (mm): 1431 (H) x 807 (V) (64.5” diagonal)
  Aspect Ratio: 16:9
  Native Resolution: UHD 3840×2160(Pixels)
  Colours: 1.07B colours (10bit)
  Brightness: 350 nits (typ.) 300 nits (min.)
  Contrast Ratio: 1200:1 Typ.
  Response Time: 8ms
  Viewing Angles: H = 178, V = 178 typ.
  Backlight Life: 30,000 Hours (Min)
  Surface Treatment: Anti-Glare
  Bezel: Slim
  Orientation: Landscape
• PLATFORM
  Processor: ARM Cortex A73 dual-core 1.2GHz
  RAM: 2GB DDR4
  Storage: 16GB
• TOUCH
  Type/ Tech: IR Recognition
  Touch Resolution: 32767 x 32767
  Touch Point: 20 points touch, 10 points writing

• INPUT
  HDMI: 2.0 x3 (3840×2160 @60Hz)
  RGB / VGA: x1
  Audio: x1 (PC audio in)
  CVBS: x1
  RS232: x1
  OPS: x1 PC Slot (proprietary)
• OUTPUT
  HDMI: x1
  Audio: x1 (Earphone out)
  SPDIF: 1(optical)
  RS232: x1
• LAN
  RJ45: x1
• USB
  Type A: USB 2.0 x4(including 2 USB port in fromt)
  USB 3.0 x2(including 1 USB port in fromt)
  Type B: x2, for touch
• SPEAKERS
  SPEAKERS: 10W x 2 + 15W x 1
• CAMERA PLATE ON TOP FOR SCREW-IN WEBCAM INSTALLATION
  Camera plate on top for screw-in webcam installation: Yes
• COMPATIBILITY
  RGB PC/HDMI PC: Refer to timing table
  CVBS: 480i
  HDMI: 3840×2160
• EMBEDDED OS
  Embedded OS: Android 7
• USB SUPPORTED FILE FORMAT
  USB SUPPORTED FILE FORMAT: Picture –
  BMP, JPEG, PNGVideo –
  Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
  Container: MPG, MP4, MOV, VOB, DAT, MKVAudio –
  Codec: AAC, HEAAC, MPEG1, MPEG2
  Container: AAC, M4A, MP3

• BUNDLE SOFTWARE
  Basic Annotation Software: myViewBoard
  Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
  Wireless Presentation with Touch Feedback: Viewboard Cast: yes
  Zoom: Yes
  ViewSonic Launcher: Embedded
• SPECIAL FEATURES
  All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort USB” to all channels.
  Simple LAN sharing between IFP and slot-in device: yes
• POWER
  Voltage: 100-240VAC +/- 10% Wide Range
  Consumption: 104W (Typ.)
  < 0.5 W (“Off”)
• ERGONOMICS
  Wall Mount (VESA® ): 600 x 400
• OPERATING CONDITIONS
  Temperature (º C): 0°C to 40°C
  Humidity: 10% ~ 90% RH non-condensing

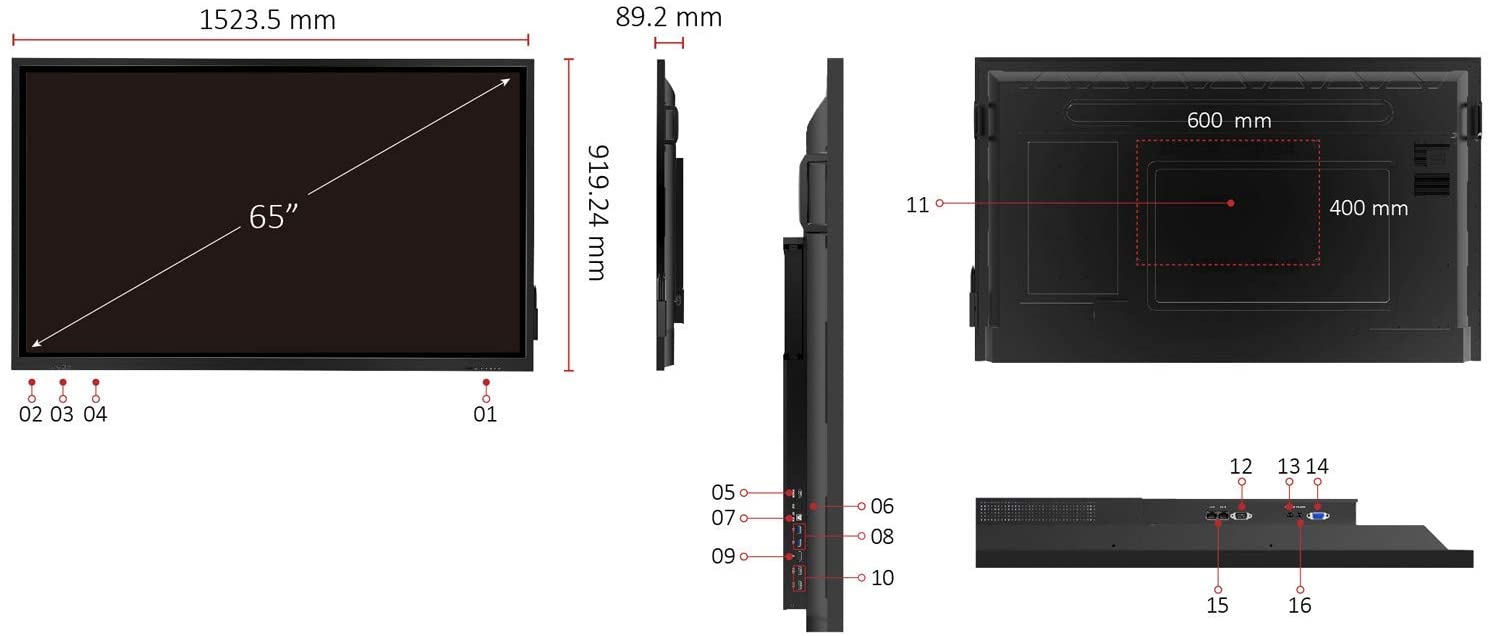

• DIMENSIONS (W X H X D)
  Physical (inch / mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
  Packaging (inch / mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm
• WEIGHT
  Net (lb / kg): 88.85 lb / 40 Kg
  Gross (lb / kg): 102.63 lb / 47 Kg
• REGULATIONS
  REGULATIONS: FCC, cTUVus, CB, CE, BSMI, RCM, BIS, EAC
• ENERGY STAR VERSION
  Energy Star version: ES7.1
• EEI RATING
  EEI rating: A+
• PACKAGE CONTENTS
  PACKAGE CONTENTS: 1. Power cable x 4
  2. Remote control
  3. USB cable
  4. AV cable

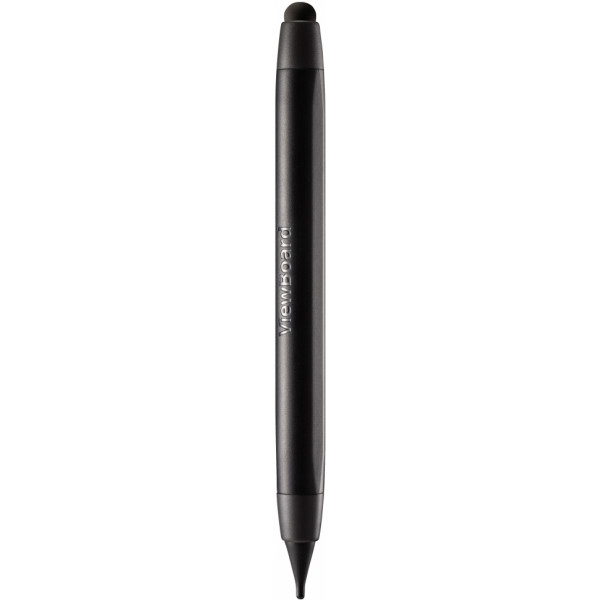

  5. Touching pen x 2
  6. Quick Start Guide
  7. RS232 adapter
  8. Clamp x 5
  9. Plate
  10. Screw x 8
  11. HDMI cable
• COMPATIBLE SLOT-IN PC
  Compatible Slot-in PC: VPC14-WP series
  VPC10-WP series
  VPC15-WP series
  VPC16-WP series
  VPC17-WP series
