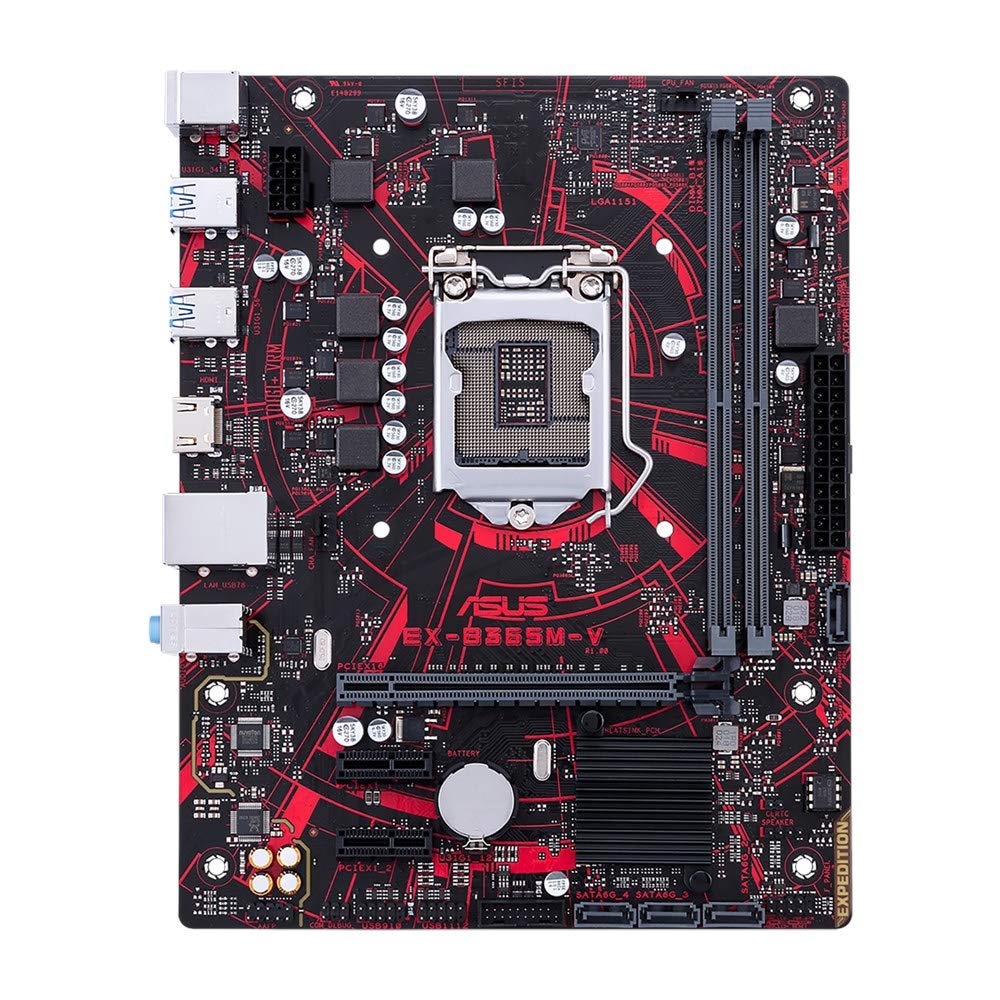

ASUS EX-B365M-V5 MOTHERBOARD

ASUS MOTHERBOARD

• CPU
  Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® B365
• Memory
  2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/D-Sub ports
  – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
  – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  2 x PCIe 3.0/2.0 x1
• Storage
  Intel® B365 Chipset :
  4 x SATA 6Gb/s port(s),
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
  Intel® Optane™ Memory Ready
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  Intel® B365 Chipset :
  6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® B365 Chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board)
• Special Features
  ASUS 5X Protection III :
  – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  – ASUS Overvoltage Protection: World-class circuit-protecting power design
  – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  – ASUS DIGI+ VRM: 6 Phase digital power design
  – ASUS SafeSlot Core+ – Prevent graphics card damage
  Non-stop Durability :
  – Anti-moisture coating – Outstanding protection against moisture and corrosion
  – USBGuard- 120% higher voltage tolerance
  Non-stop Gaming :
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  Non-stop Challenger :
  – ASUS iCafe Labs Certified – Top games and 100+ peripherals tested
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
• Operating System Support
  Windows® 10 64-bit
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 2.0
  3 x Audio jack(s)
  4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• Internal I/O Ports
  1 x AAFP connector
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
• Accessories
  User’s manual
  I/O Shield
  1 x M.2 Anchor
• Operating System
  Windows® 10 64-bit
• Form Factor
  uATX Form Factor
  8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm )
